FALCON HD Magnetic Wireless Camera System + 7 inch Mirror Monitor with DVR recording

SKU: FN-MWCS7-R Category:
  • HD Magnetic Wireless Camera System
  • No Drilling Required for installation
  • 7″ Mirror Monitor with Recording Function
  • Ideal for Caravans, Motorhomes and more.
  • Infra Red view for night time driving
  • Integrated Solar Panel on camera unit
  • Monitor Clips over existing rear view mirror
  • Accessories and Protective Carry Case included

€449.00

    Clear

    Welcome to the FALCON HD Magnetic Wireless Camera System + 7″ Mirror Monitor



    Designed for simplicity and quality, this camera system is completely Plug & Play and requires no Drilling

    The Camera system is ideal for those looking for a simple but efficient camera system without the hassle or cost implications of a permanently fitted and wired system.  The Camera has a 9,900mah long life lithium battery and also an integrated Solar Panel which allows the camera to be trickle charged via sunlight.  The Camera can also be detached from the vehicle and charged via USB port.  The Camera connects wirelessly to the 7″ Mirror Monitor with a reliable and uninterrupted signal at a range of up to 100 metres.

    Drive With Peace Of Mind

    The new Falcon Magnetic Wireless Camera System has a built in DVR ( Digital Video Recording ) function, which records journeys and provides peace of mind if there were any incidents.

    Any Incidents or journeys can be recorded on SD Storage Cards of up to 128GB  (32GB Supplied with system) and played back directly on the monitor or on a PC / Mac.

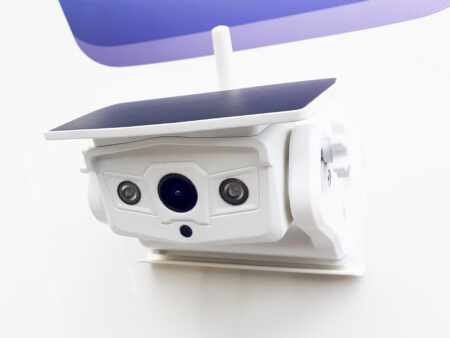

    Wireless Camera

    The Magnetic Wireless Camera is simple to install with the included coated metal Camera Mounting Plate which is bonded to the vehicle and

    then the magnetic camera applied to it charged for the first time.  The integrated solar panel keeps the camera trickle charging with its the mono-crystalline solar cells.  On average the battery life of the camera is up to 12hrs in daytime driving, up to 10 hours for nigh time driving as the camera also has built in Infra red LEDs to provide a clear black and white view to aid night time driving.  The camera is also a wide lens of 125 degress for a good clear view of what is happening on the road behind you.

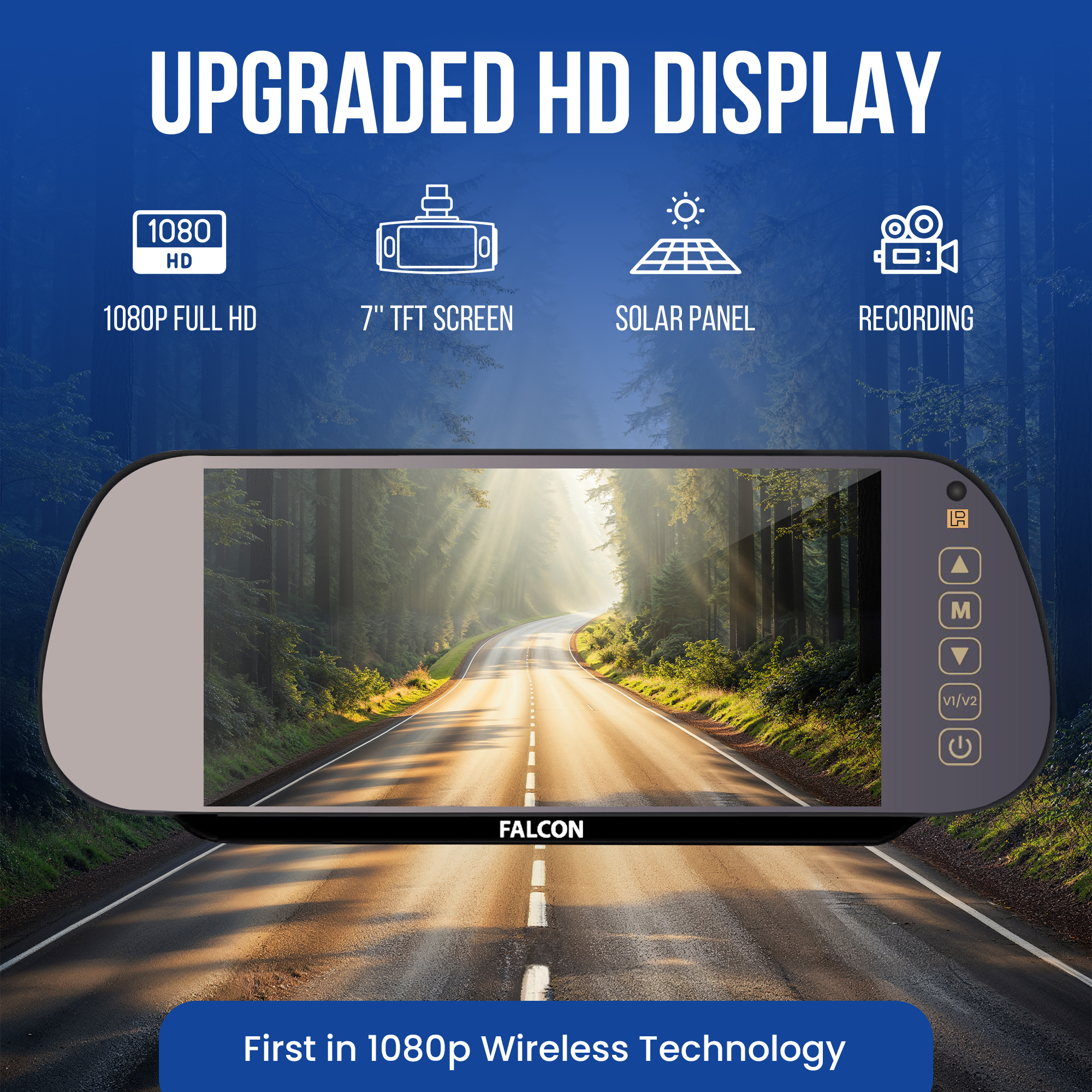

    7″ Mirror Monitor with DVR Recording Function

    The 7″ Mirror Monitor simply clips to the existing rear view mirror in the vehicle or towing vehicle and provides a natural and comfortable position for viewing the road behind.  We are used to looking at our rear view mirrors rather than down at a dash mounted or media monitor.  The monitor is powered via USB-A lead which can also be connected to a 12V DC cigarette lighter port with the supplied USB to DC adapter.

    The Monitor can connect up to 4 separate Wireless cameras ( Additional Cameras available separately ) and show the camera views in a loop, split screen, triple screen or quad view.

    The monitor also provides a full DVR ( Digital Video Recording ) function which records all of your journeys for peace of mind and to record incidents or journeys.  The System allows storage cards of up to 128GB and is supplied with a 32GB card to get you started.

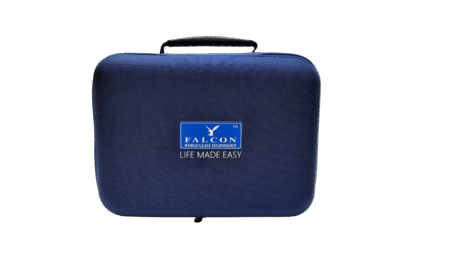

    Accessories and Protective Storage / Carry Case

    The system comes with a range of accessories for powering and using the camera system + a Protective Storage Carry Case for storing away the camera and monitor when not in use.

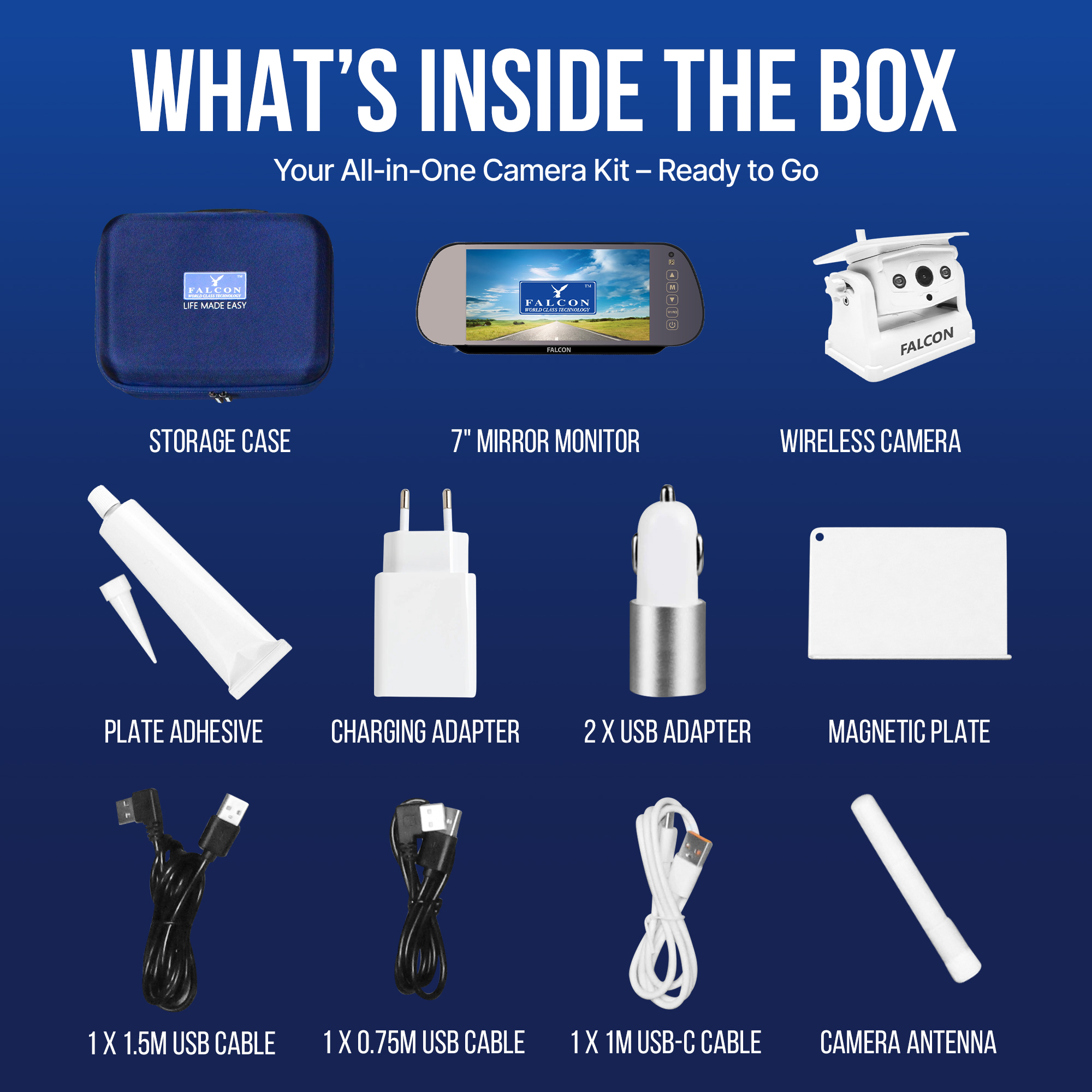

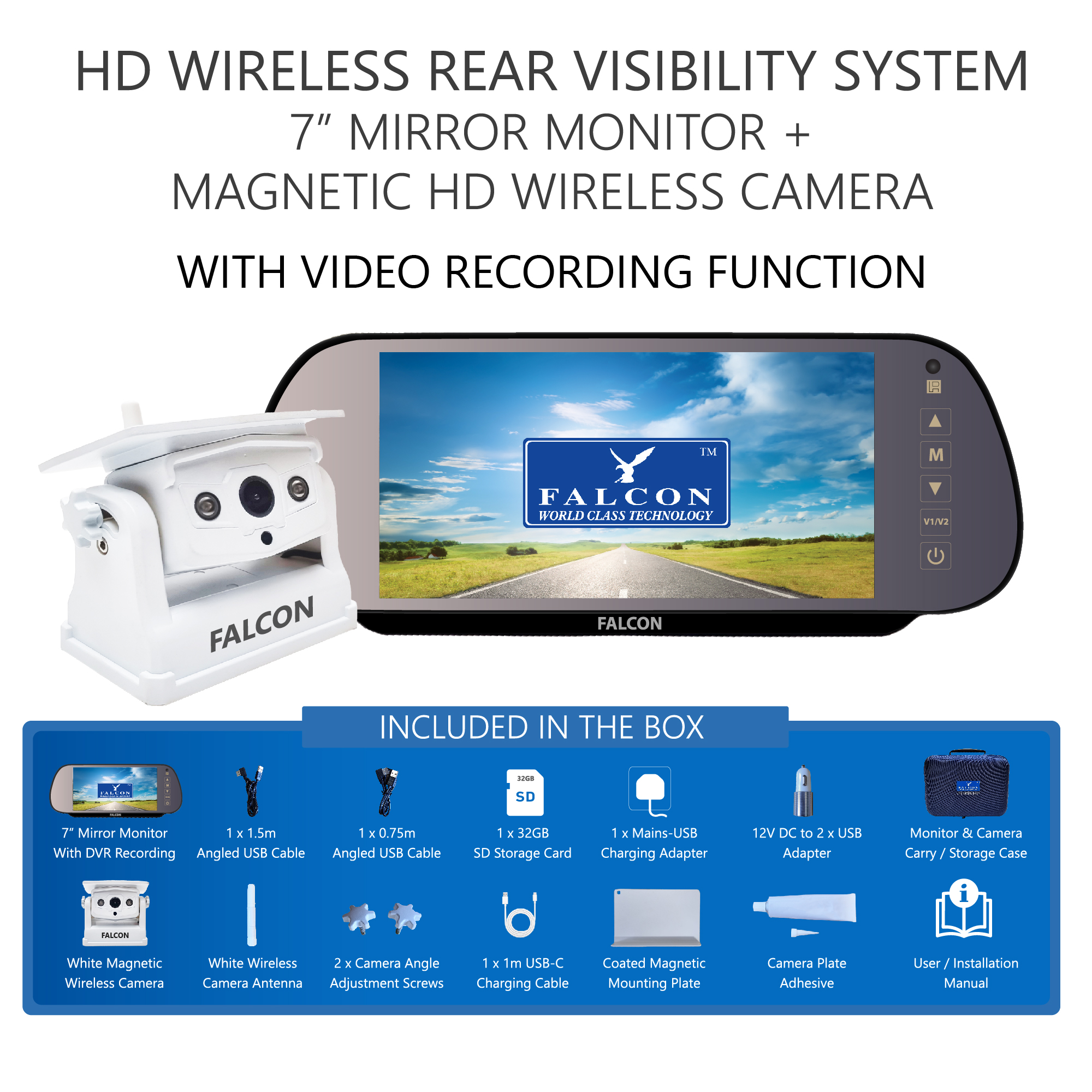

    Included With the System

    • Magnetic Wireless Camera
    • Camera Antenna
    • 2 x Camera Angle Adjustment Screws
    • 1 x USB-C Camera Charging Cable
    • 1 x Metal Camera Mounting Plate
    • 1 x Mounting Plate Adhesive
    • 1 x 7″ Mirror Monitor
    • 1 x 1.5mtr Angled USB-A Cable
    • 1 x 0.75mtr Angles USB-A Cable
    • 1 x 12V DC  to Twin USB Adapter
    • 1 x 32GB SD Storage Card
    • 1 x Protective Storage / Carry Case
    • 1 x User Manual
    • 1 x Gift Box



    Included With The System:

    • Magnetic Wireless Camera
    • Camera Antenna
    • 2 x Camera Angle Adjustment Screws
    • 1 x USB-C Camera Charging Cable
    • 1 x Metal Camera Mounting Plate
    • 1 x Mounting Plate Adhesive
    • 1 x 7″ Mirror Monitor
    • 1 x 1.5mtr Angled USB-A Cable
    • 1 x 0.75mtr Angles USB-A Cable
    • 1 x 12V DC  to Twin USB Adapter
    • 1 x 32GB SD Storage Card
    • 1 x Protective Storage / Carry Case
    • 1 x User Manual
    • 1 x Gift Box

    Specifications:

    Camera:

    Imaging chip type: 1/4 inch color CMOS
    Effective pixels: AHD 1080P
    Transmission power: 23dBm
    Available low light: 0.1Lux
    Viewing angle: 125°
    Waterproof grade: IP67
    Shockproof level: 10G
    Battery capacity: 9,900 mAh
    Charging interval： 6H
    Average usage per charge: 12H
    Solar panel power: 0.8W
    Working voltage: DC12V-24V 400mA
    Charging power supply: Type-C 5V / 2A
    Operating temperature: -20°C ~ +70°C
    Storage temperature: -30°C ~ +70°C
    Dimensions: 120 * 95 * 70mm (W, H, D)



    Mirror Monitor:

    Screen size: 7 inch
    Contrast: 350:1
    Brightness: 300 cd/m2
    Power consumption: 6W
    Screen type: TFT LCD Screen(16:9)
    Resolution: 1024(W) x RGB x 600(H)
    Video Output Level: 1Vp-p 75Ohm
    DVR – (Digital Video Recording) function
    Supports up to 512GB SD storage card (32GB included)
    Recording format: AVI
    Clips over existing rear view mirror
    Wide viewing angle: (left/right) 85 (up/down) 85
    Operating voltage: DC 5V
    Storage temperature: -20° to +85°C
    Operating temperature: -15° to +50°C
    Dimensions: 249.5 * 108 * 39 mm (W, H, D)

    User Manual English:

    Falcon FN-MWCS7-R – Magnetic Wireless Camera and 7inch Mirror Monitor User Manual V1 -ENGLISH

    Bedienungsanleitung Deutsch

    Falcon FN-MWCS7-R – Magnetic Wireless Camera and 7inch Mirror Monitor User Manual V1 -DEUTSCH

    Gebruikershandleiding Nederlands

    Falcon FN-MWCS7-R – Magnetic Wireless Camera and 7inch Mirror Monitor User Manual V1 – NEDERLANDS
