Falcon EVO Mobile Amplified Antenna
The Amplified antenna uses MiMo (Multiple input, Multiple output) technology to send and receive more than one data signal simultaneously for the best possible 5G / 4G speeds.

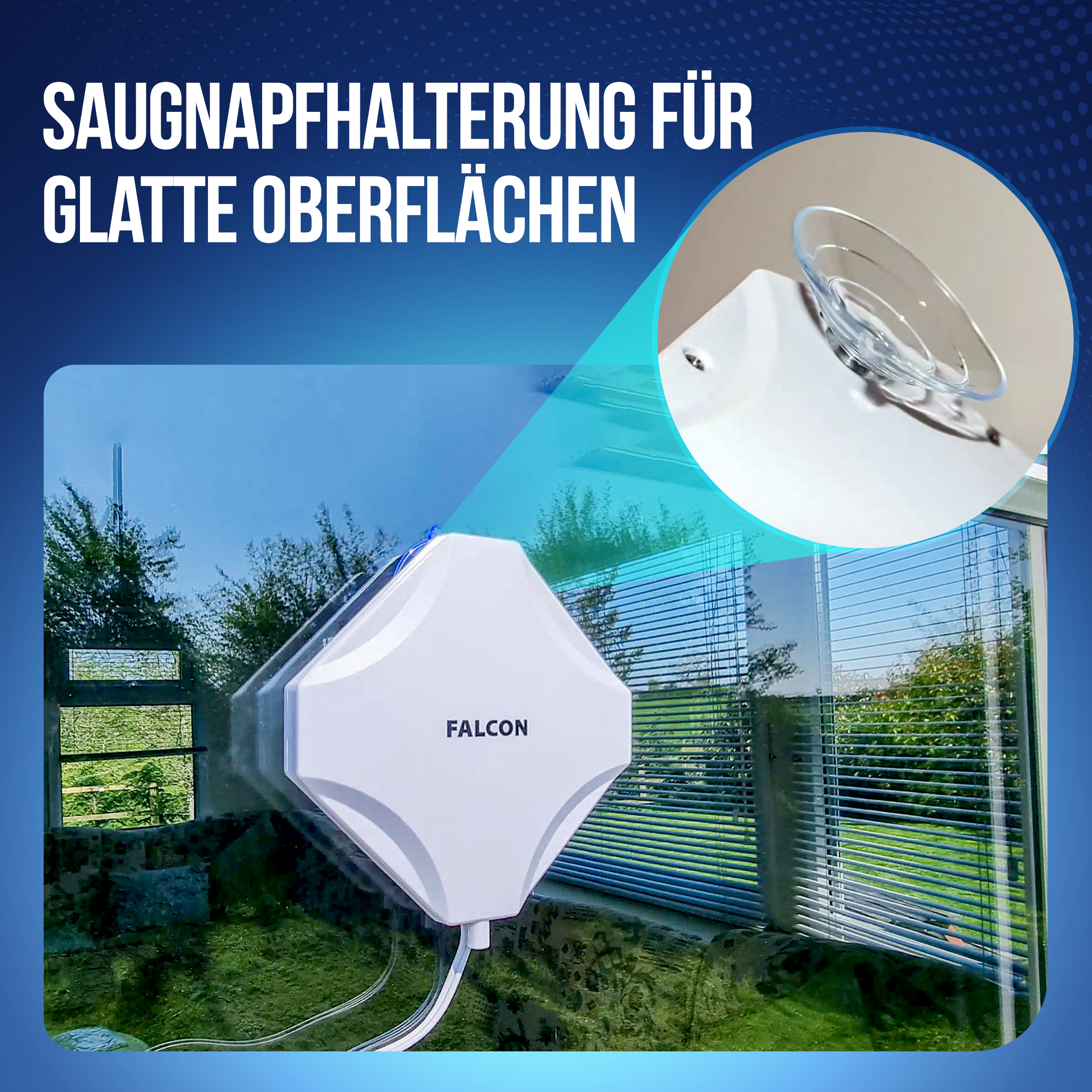

The antenna has a slim 4 metre cable , slim enough to fit through a window and still close it. It can also be either suction mounted or magnetically mounted thanks to its two interchangeable bases that can be fixed to the back or the bottom of the antenna, depending on how you wish to mount it.
Falcon 5G 1800Mbps Portable Router
- Dual Band 2.4GHz, 5GHz and Wifi6
- Peak Download Speeds – Up to 3600Mbps
- Wifi Transfer Speed – Up to 1800Mbps
- LTE Category : 22
- Wifi Users: Up to 32
- Battery: 4500 mAh Quick charge
Additional Accessories :
-
Protective Storage / Carry Case
-
SIM Card Adapter
-
12V to USB charge adapter
-
Router USB-C charging lead
-
Magnetic Router mounting plate
-
Self Adhesive Metal Antenna Mounting Plate (For non metal surfaces) if using antenna with the magnetic base
EVO Mobile Antenna:
Electrical Data
- Frequency: 698-960MHz, 1710-2700MHz, 3300-4800MHZ
- Peak Gain (dBi): 3.5dBi/6dBi/6.5dBi
- Polarization: Vertical and Horizontal
- Impedance:50 Ohm
- Connector: TS9 (M)*2
- Cable: RG-174
Mechanical Data
- Available Colour: White
- Height(mm): 203mm
- Diameter(mm): 170mm
- Operating Temperature:- 20° ~ +65°
- Cable Length: 4mtr
- Material: Body: ABS
- Cable: PVC
- Mounting: Suction cups or magnet on base or rear
5G Router:
5G 1800 Portable Wireless Router
- LTE Category: 22
- Chipset: QUALCOMM Snapdragon SDX55+QCA6391
- Simlock free
- Maximum Wi-Fi users: 32
- Download speed: 1.8 Gbps
- Upload Speed: approx. 255 MBps
- Battery: 4500 mAh Quick charge
- Display: 2.4 inch touch screen
- Weight: ±200 gram
- Dimensions (WxHxD): 133 x 73 x 18.5 mm
- 5G N1,N3,N5,N7,N8,N20,N28,
- 5G N77, N78, N40, N41
- LTE FDD B1,B3,B5,B7,B8,B20,B28, B38, B40, B42, B43
- LTE TDD B38
- UMTS B1, B2, B8
- Dual Band 2.4 and 5 GHz
- 5G /LTE/ Wi-Fi offload
Supported network frequency bands:
– 4G Bands: B1/B3/B5/B7/B8/B18/B19/B20/B28/B32/B38/B41/B42
– 3G Bands: MTS: B1/B2/B5/B8
Inlcuded:
- FALCON EVO Mobile 5G LTE Antenna
- 1800MPBS 5G Portable Router
- Protective Storage / Carry Case
- SIM Card Adapter
- 12V to USB charge adapter
- Router USB-C charging lead
- Magnetic Router mounting plate
