Additional Wireless Camera, Compatible with FALCON FN-WCCS-W-R –

HD Wireless Camera System with 7″Mirror Monitor + DVR Recording Function

Additional Wireless Camera, compatible with the Falcon FN-WCCS-W-R HD Digital Mirror Monitor & Wireless Camera System, which can pair up to 4 cameras to the monitor. These can viewed using the quad view display on the monitor or by switching between cameras, so you can see all your blind spots while driving, reverse with peace of mind you know what behind you, watch what your towing to make sure it stays secure or make sure your bikes stay firmly attached to your bike rack as your going down the motorway.

Enjoy a Full HD 1080p picture with a range of up to 100metres and with DVR recording capabilities when connected to the systems monitor, making your journey more comfortable, knowing what’s going on behind you ~ Life Made Easy, by Falcon.

Drive With Peace Of Mind

The new Falcon Wireless Camera System has a built in DVR ( Digital Video Recording ) function, which records journeys and provides peace of mind if there were any incidents.

Any Incidents or journeys can be recorded on SD Storage Cards of up to 512GB  and played back directly on the monitor or on a PC / Mac.

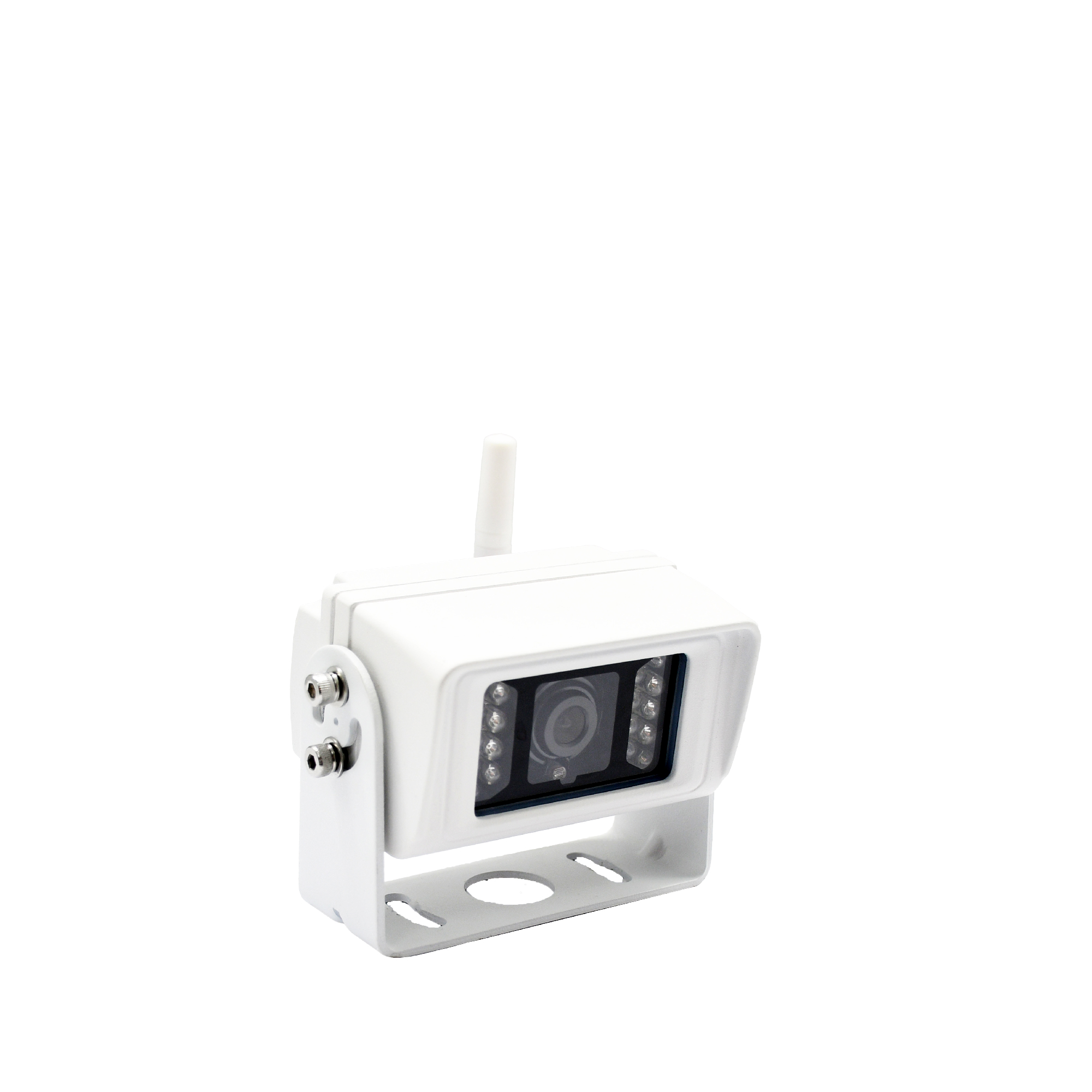

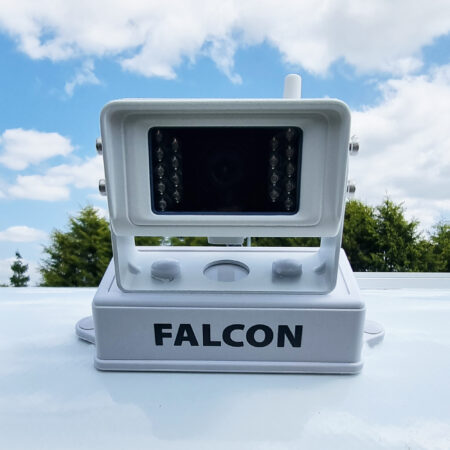

Wireless Camera

The Wireless Camera provides a Full HD High Quality image with a wide viewing angle of 110˚ and a connection distance between the camera and monitor can reach up to 200 metres.  The camera also has built in infra red LEDs which allow improved night time driving visibility. The camera just requires a 12v permanent feed from the leisure battery or another 12v permanent source.

• 1/2.9 Colour CMOS image sensor
• Resolution: 1080p (Full HD)
• Effective pixels: 1920(H) X 1080(V)
• Field of view: 110˚
• Wireless frequency range: 2400 ~ 2483.5MHz
• Transmit Frequency: 18dBm
• Transmit Distance: Up To 200m (Clear Line Of Sight)
• Auto exposure compensation
• Infrared distance: 15 Metres
• Shell material: Aluminium alloy
• Waterproof grade: IP69K
• Input power: DC11-32V±10%
• Dimensions: 106mm X 75mm X 70.4mm ( W, H, D )
• Operating temperature: -20°C ~ +70°C
• Storage temperature: -30°C ~ +70°C

Included:

• FN-WCCS-AWC – White Wireless Camera
• Short White Wireless Antenna
• Camera Mounting Box
• Bonding Adhesive
